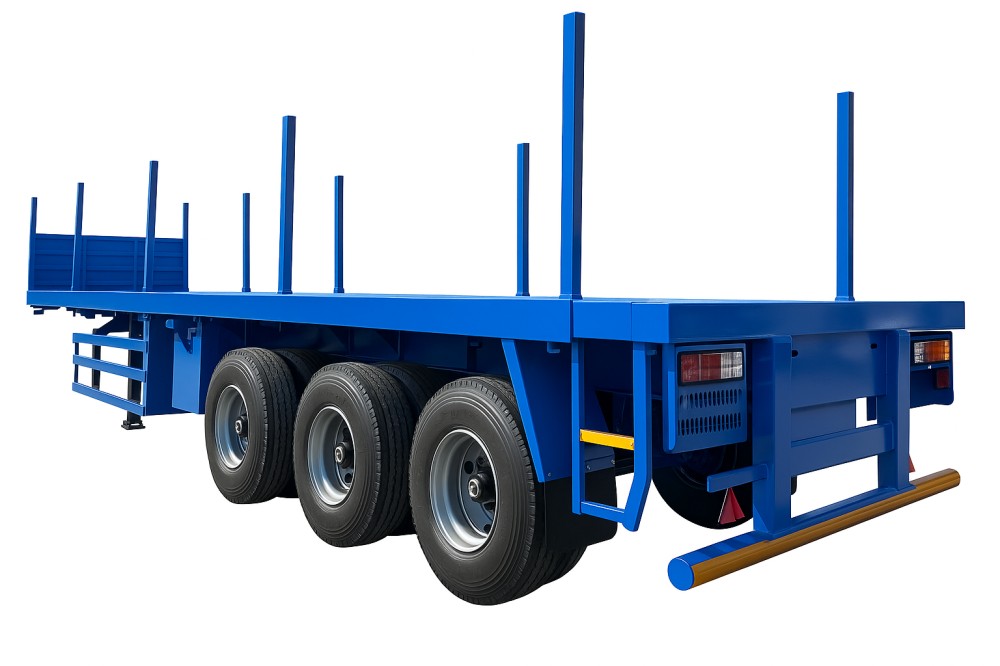

Product Description: 3-Axle Flatbed Semi-Trailer

The 3-Axle Flatbed Semi-Trailer is a high-performance, heavy-duty transportation solution designed for durability and efficiency in demanding logistics operations. Engineered with premium components and a robust structure, it is ideal for carrying heavy cargo across long distances.

Key Specifications:

• Axles: Equipped with 3 pieces of 14-ton Kaiyi brand axles (German style) for superior load-bearing performance.

• Tires: Fitted with 6 pieces of Jindun brand tires, size 385/65R22.5, ensuring reliability and traction.

• Rims: 6 pieces of 9.0-22.5-14 standard rims.

• Dimensions: 13,600 mm (L) × 2,500 mm (W) × 1,600 mm (H).

• Loading Capacity: Up to 45 tons (tested before shipping).

• Traction Pin: 50# interchangeable type.

• Brake System: WABCO system for enhanced safety and performance.

• Suspension: Full air suspension with a liftable first axle for optimal weight distribution.

• Landing Gear: JOST brand, 28-ton single-action landing gear.

• Storage: Includes 2 toolboxes and 1 spare tire rack for added convenience.

• Main Beam: 500 mm deep beam with dimensions of 12 * 8 * 14 mm, made from 160 mm wide steel. Chassis is constructed as a single piece with no welding joints for maximum strength.

• Side Beam: 160 mm channel steel for lateral support.

• Flooring: 3 mm patterned steel plate for anti-slip surface and durability.

• Columns: 12 square-shaped columns, each 1200 mm in height.

• Painting: Powder-coated for corrosion resistance and long-lasting appearance.

• Front Wall: Measures 1200 mm in height and is 1.5 mm thick for added protection.

• Color: Blue, Red, Yellow ( On Demand)

• Accessories: Comes with 1 fire extinguisher and 12 container locks for cargo security.
